Clinic In A Can General Configurations

Units available in these sizes
Small: 10 ft / 7.5m²
Medium: 20 ft / 15m²
Large: 40 ft / 30m2

Single Unit
Containerized flexible space solutions for the following medical functions:
OBGYN Ophthalmology
Dental Maternal/Infant
Trauma/ER Infectious Disease
Family Medicine/Primary Care Intensive Care Unit
Orthopedics Inpatient hospital room

Multiple Units
Containerized flexible spaces for community health center and hospital solutions comprised of units based on your configuration needs.

Linear Solutions
(Needs a line of copy)

Custom Made Relocatable Medical Buildings (CMRMB)
(Needs a line of copy)

Storage Structures

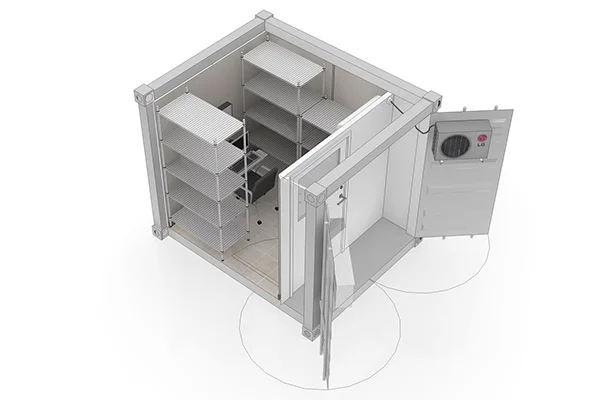

1. Storage: Small
(1) 10 ft (7.5m²) Unit
Usable General Storage Space:
68.4 sq. ft / 6.35 sq. mt
A. Solar powered
B. Diesel powered

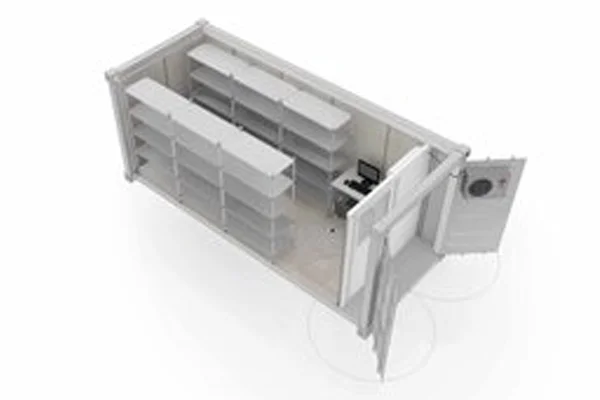

2. Storage: Medium
(1) 20 ft (15m²) Unit
Usable General Storage Space:
144.4 sq. ft / 13.42 sq. mt
A. Solar powered
B. Diesel powered

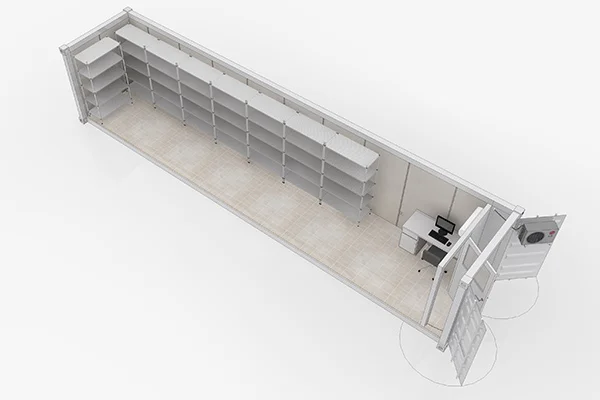

3. Storage: Large
(1) 40 ft (30m²) Unit
Usable General Storage Space:
296.4 sq. ft / 27.54 sq. mt
A.  Solar powered
B.  Diesel powered

LAB STRUCTURES

one-column image 600x338.jpg
one-column image 600x338.jpg
one-column image 600x338.jpg

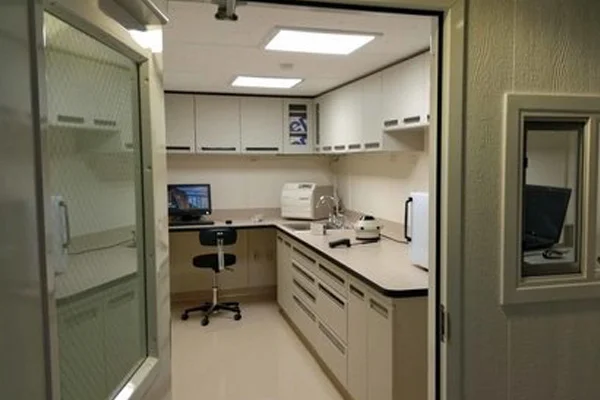

1. Lab: Medium
(1) 20 ft (15m²) Unit
Usable Medical Space Square Footage: 144.4 sq. ft / 13.42 sq. mt
A. Solar powered
B. Diesel powered
C. Diesel powered plus inverter and battery pack

2. Lab: Large
(1) 40 ft (30m²) Unit
Usable Medical Space Square Footage: 296.4 sq. ft / 27.54 sq. mt
A. Solar powered
B. Diesel powered
C. Diesel powered plus inverter and battery pack


CLINIC STRUCTURES

one-column image 600x338.jpg
one-column image 600x338.jpg
one-column image 600x338.jpg

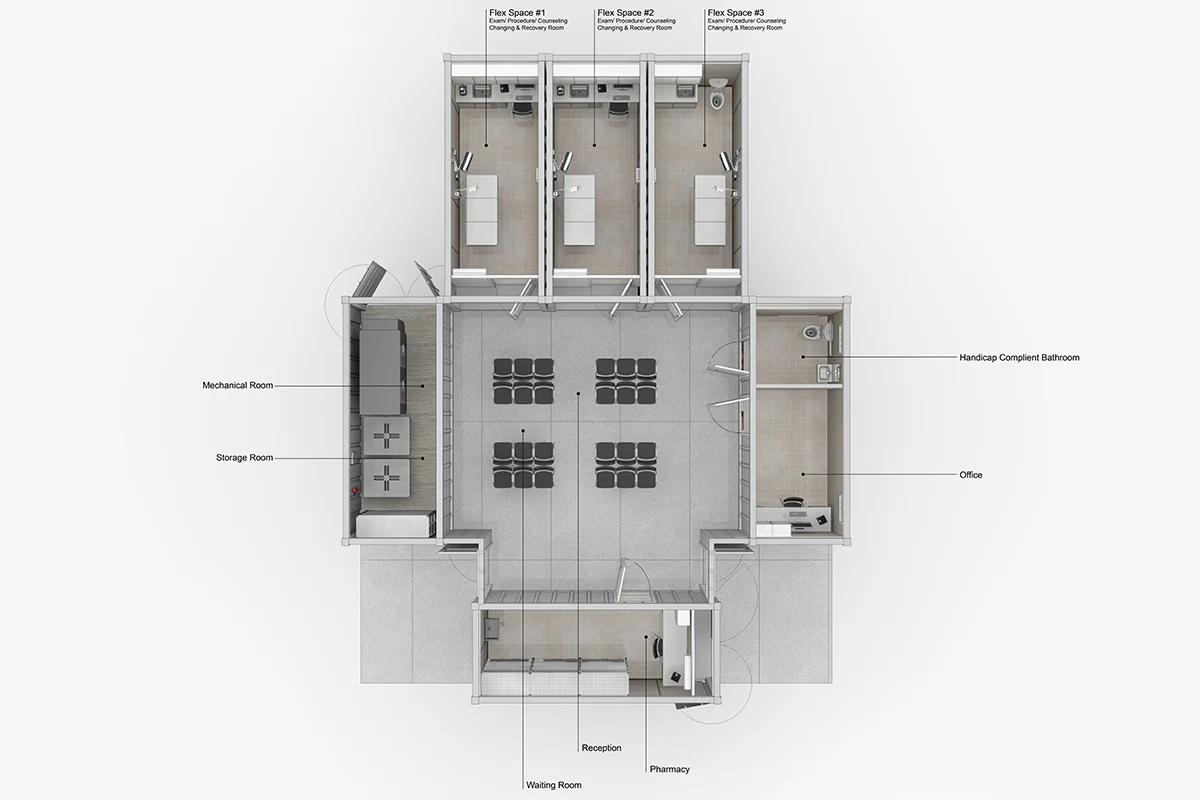

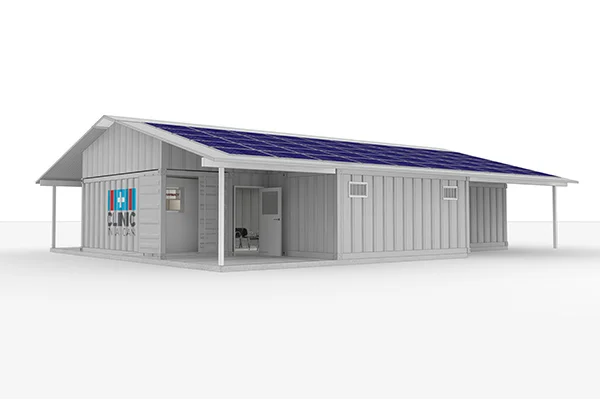

2. Clinic Large: 6 Unit
(6) 20 ft (15m²) Units
Overall square footage: 40 ft X 52 ft = 2080 sq. ft/193.24 sq. mt
Usable Medical Space Square Footage: 760 sq. ft/70.61 sq. mt
Covered Internal Waiting area space square footage 24 ft X 24 ft: 576 sq. ft/53.51 sq. mt
Usable General Storage Space: 152 sq. ft/14.12 sq. mt
A. Solar powered
B. Diesel powered
C. Diesel powered plus inverter and battery bank


1. Clinic Regular: 4 Unit

(4) 20 ft (15m²) Units

Overall square footage:
36 ft X 40 ft = 1440 sq. ft / 13.78 sq. mt
Usable Medical Space Square Footage: 456 sq. ft/42.36 sq. mt
Covered Internal Waiting area space square footage 20 ft X 24 ft:
480 sq. ft / 44.59 sq. mt

Usable General Storage Space: 152 sq. ft/14.12 sq. mt

A. Solar powered
B. Diesel powered

C.
Diesel powered plus inverter and battery bank


Circumcision Clinic Structures

one-column image 600x338.jpg
one-column image 600x338.jpg

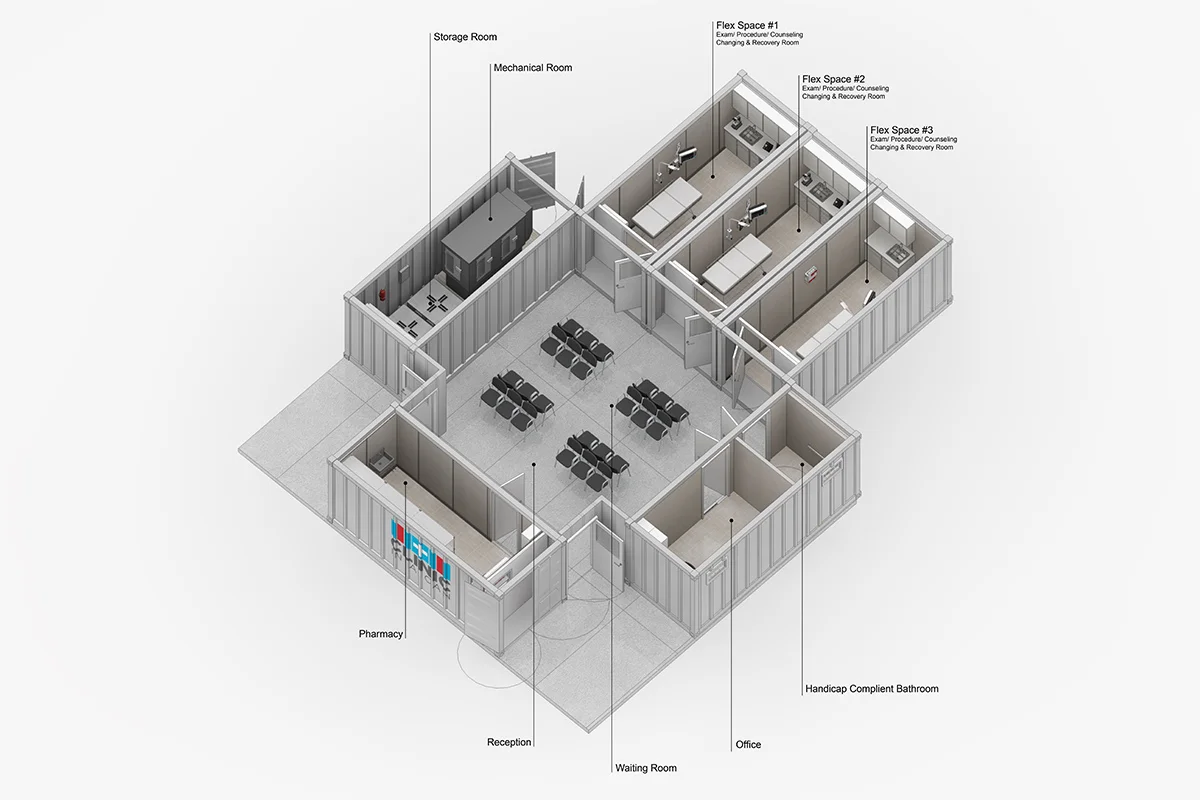

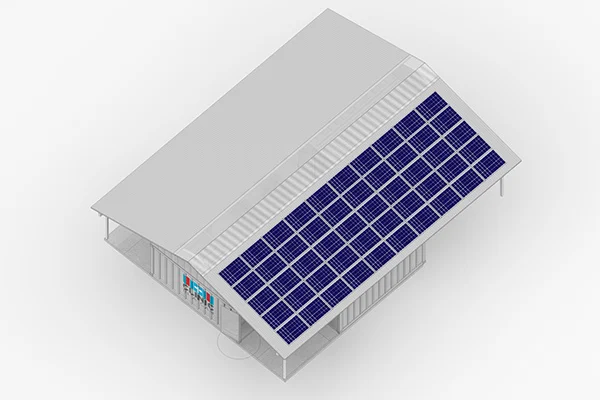

1. Circumcision Clinic Regular: 6 Unit
(6) 20 ft (15m²) Units
Overall square footage: 40 ft X 52 ft = 2080 sq. ft / 193.24 sq. mt
Usable Medical Space Square Footage: 760 sq. ft/70.61 sq. mt
Covered Internal Waiting area space square footage 24 ft X 24 ft: 576 sq. ft / 53.51 sq. mt
Usable General Storage Space: 152 sq. ft/14.12 sq. mt
A. Solar powered
B. Diesel powered
C. Hybrid power system solar + diesel

2. Circumcision Clinic Large: 8 Unit
(8) 20 ft (15m²) Units
Overall square footage:
24 ft X 44 ft = 1056 sq. ft / 98.11 sq. mt
Usable Medical Space Square Footage: 1064 sq. ft / 98.85 sq. mt
Covered Internal Waiting area Space square footage 20 ft x 28 ft:
560 sq. ft / 52.03 sq. mt
Usable General Storage Space: 152 sq. ft/14.12 sq. mt
A. Solar powered
B. Diesel powered
C. Hybrid power system solar + diesel
